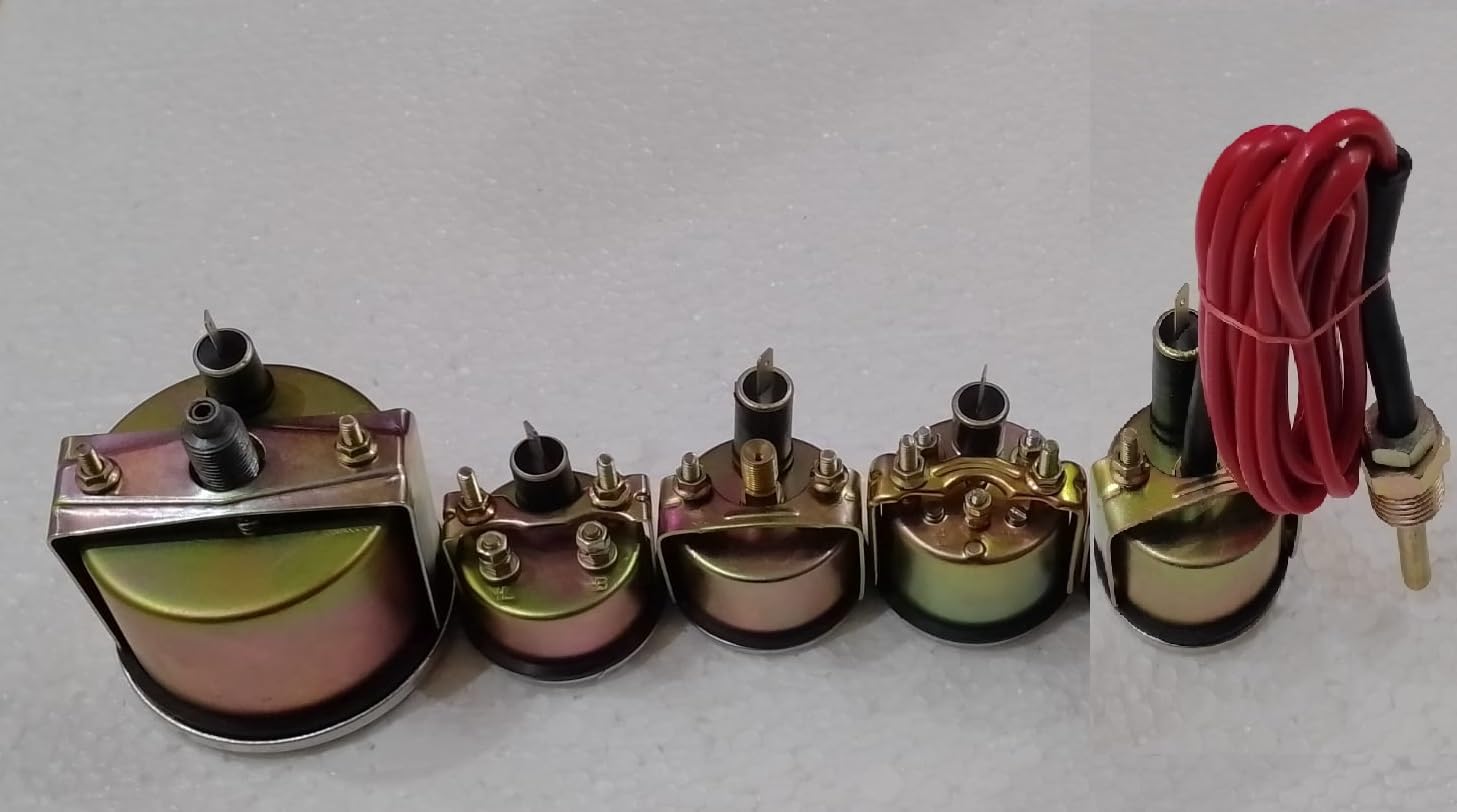

Gauges Set fits Case Tractor Temperature Tachometer Oil Pressure Ammeter Fuel Gauge Set

This Listing Is for a Tachometer and Four gauges. Gauges Fit Case Tractors: C, CC, D, DC, DI, DO, L, LA, LAI, RC, S, SC, SI, SO, 400, 430, 470, 530, 570, 600, 730, 830, 930, 1030 Tachometer part numbers it replaces are: A32143, A32153, A36745, A57179. This tachometer assembly has a 5/8" UNF cable end and a 12v light also. The diameter is 3 3/8" (85mm). This temperature gauge: replaces Case part number: VT- 2265 "Without gauge cluster" This Water temperature gauge has a 72" / 6 ' lead. 5/8-18 U.F. END W/ 1/2" NPT PIPE BUSHING, It has a 12 volt light feature included. This amp meter gauge replaces Case part number: 03601AB, The gauges have Yellow Zinc "Cad" Plating for corrosion resistance protection! Dash opening is 2" 52mm. Mounting studs and bracket, 20-0-20 amp range, rubber gasket seal for mounting flush to dash and have glass lens. It has a 12 volt light feature included . This oil pressure gauge replaces Case part number: 04370AB, A31169 This gauge has Yellow Zinc "Cad" Plating for corrosion resistance protection, 2" 52MM Dia, 0- 60 PSI, 1/8" NPT male stud / dash mount stud type with rubber gasket to dash. It has a 12 volt light feature included . This Fuel Gauge The gauges have Yellow Zinc "Cad" Plating for corrosion resistance protection! Dash opening is 2" 52mm. Mounting studs and bracket, rubber gasket seal for mounting flush to dash and have glass lens. It has a 12 volt light feature included .

• Includes Back Lite
